Home > RF connectors > 2.92mm > Clamp Non-Weldable PCB Connectors 2.92-K-013-1 EDG

< >

Clamp Non-Weldable PCB Connectors 2.92-K-013-1 EDG

Description：2.92mm female flange connector,40GHz

  • Discounted prices that can be enjoyed when reaches the following quantity range：
    Pricing Chart
    Qty. Unit Price
    CALL CALL

    • Data Sheet Download

    Stock：100

    Enter Quantity:

    Price: CALL

    Product No.:

    Product Weight:0.00g

    • Specifications

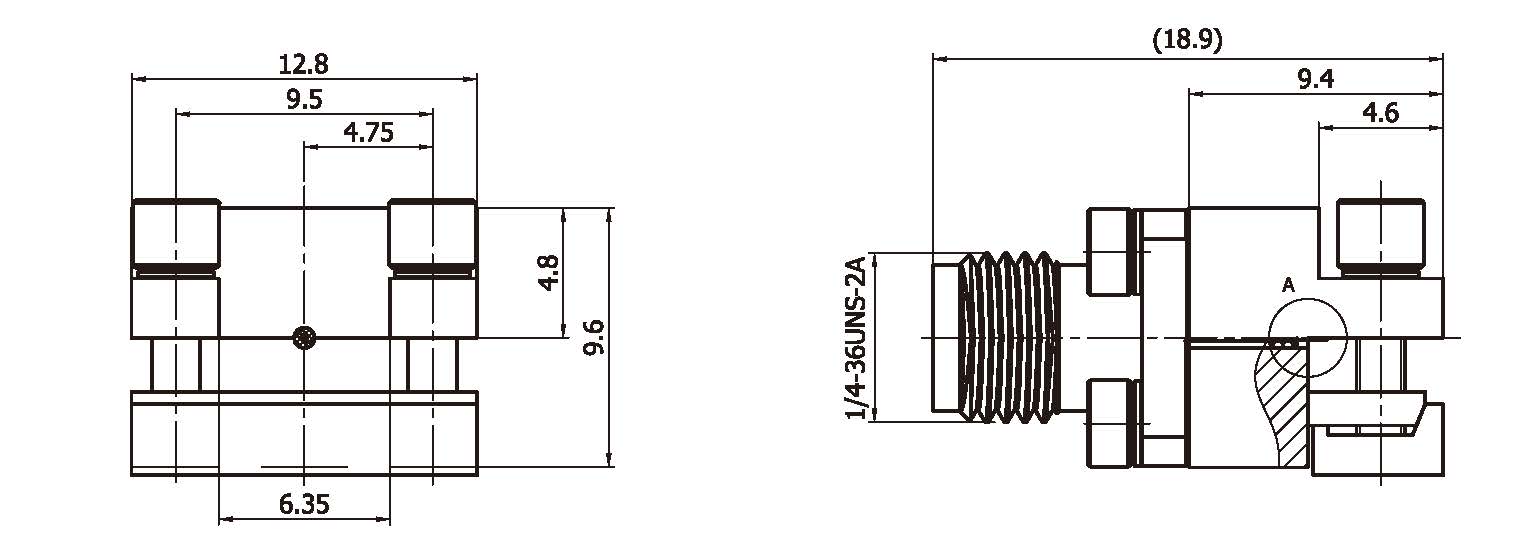

    • 2D Data
    • 3D Drawing

    Connector Series

    2.92mm

    Connector Gender

    Female

    Connector Body type

    Straight

    Connector Body material

    Stainless steel

    Installation method

    PCB Connect

    Connector Impedance

    50

    Connector Maximum frequency

    40

    Connector Polarity

    Standard

     

     
