Home > RF adaptors > SMA/SMAA > SMA-50JJ-2

< >

SMA-50JJ-2

Description:SMA male to SMA male adapter, 26.5GHz

  • Discounted prices that can be enjoyed when reaches the following quantity range:
    Pricing Chart
    Qty. Unit Price
    CALL CALL
  • Data Sheet Download

    Stock:0

    Enter Quantity:

    Price: CALL

    Product No.:

    Product Weight:0.00g

    • Specifications

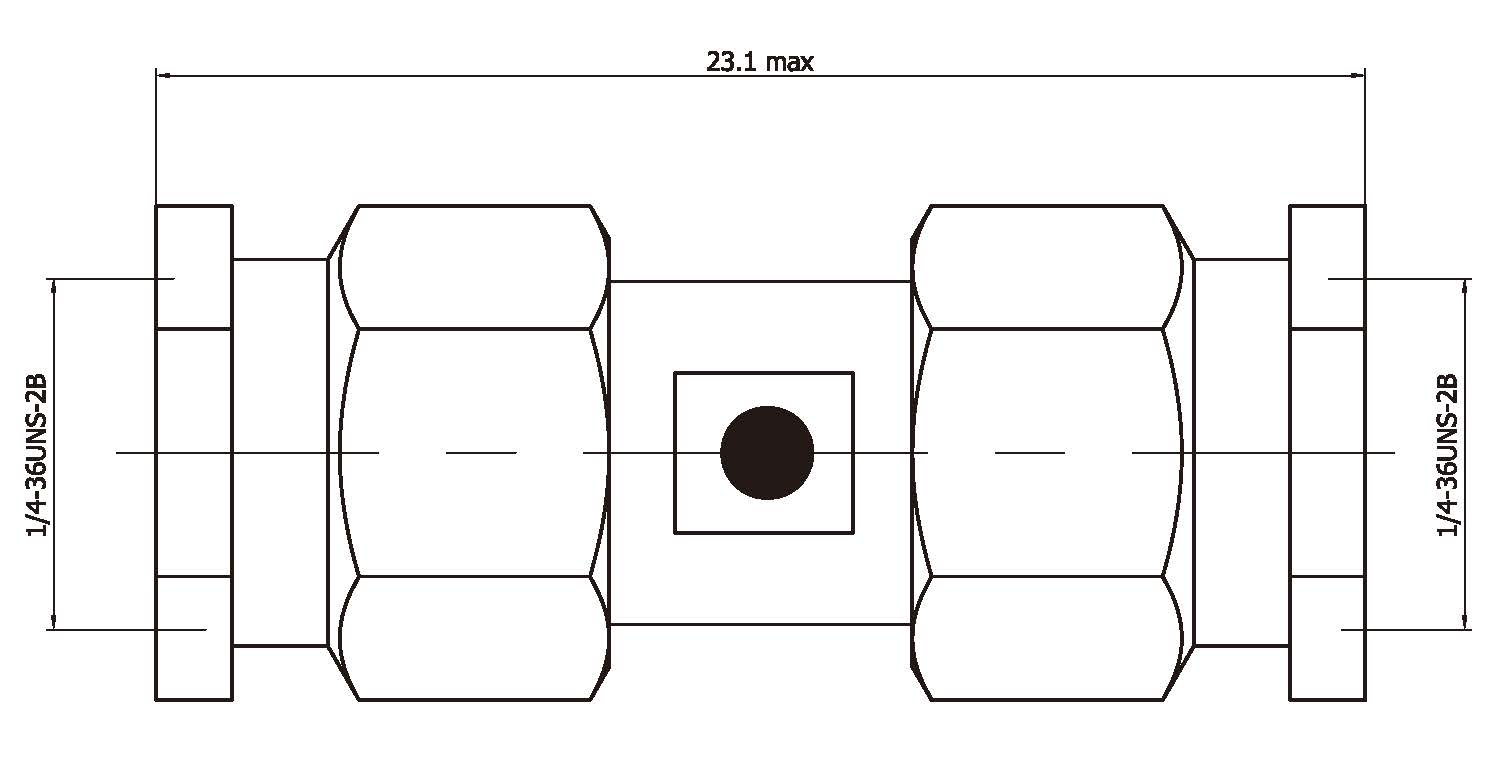

    • 2D Data
    • 3D Drawing
    Adaptor type Within series
    Connector1 SMA
    Connector2 SMA
    Connector 1/Port characteristics Pin Connector
    Connector1/Body type Straight
    Connector1/Shell material Stainless steel

    Connector1/Installation method

    Standard
    Connector 2/Port characteristics Pin connector
    Connector2/Body type Straight
    Connector2/Shell material Stainless steel
    Connector2/Installation method        Standard
    Polarity Standard
    Impedance 50
    Maximum frequency 26.5
