Home > RF connectors > 2.92mm > 2.92-J405-1

< >

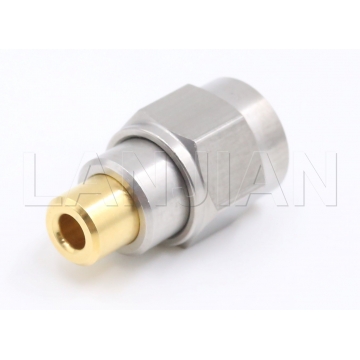

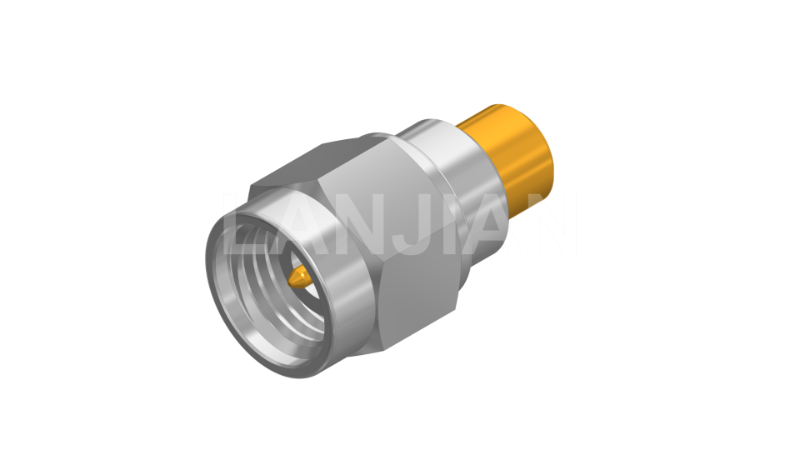

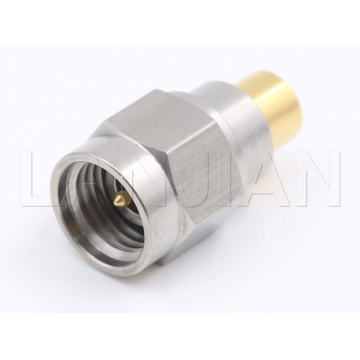

2.92-J405-1

Description：2.92mm staight pin cable connectot,40GHz

  • Discounted prices that can be enjoyed when reaches the following quantity range：
    Pricing Chart
    Qty. Unit Price
    CALL CALL

    • Data Sheet Download

    Stock：0

    Enter Quantity:

    Price: CALL

    Product No.:

    Product Weight:0.00g

    • Specifications
    • 2D Data

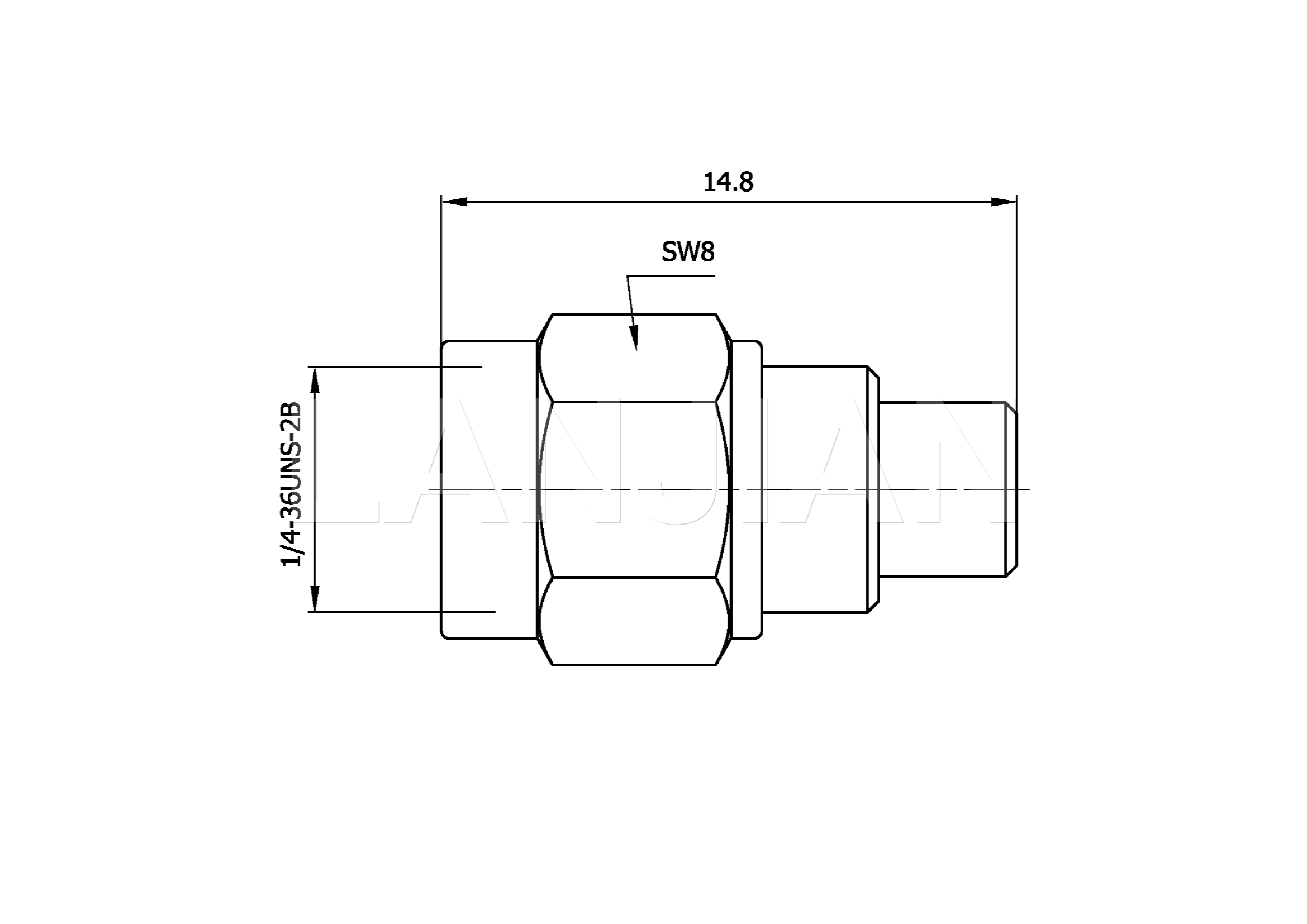

    • 3D Drawing
    Series 2.92mm
    Port characteristics Pin Connector
    Body type Straight
    Installation method Connect the flexible cable
    Polarity Standard
    impedance 50
    Shell material Stainless steel
    Maximum frequency 40
