Z0N-2.92J/2.92J-600-1000

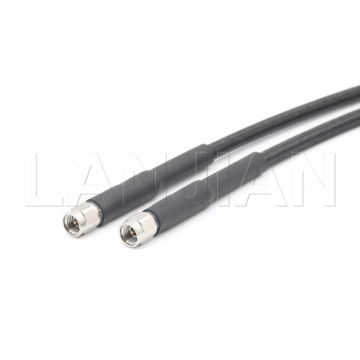

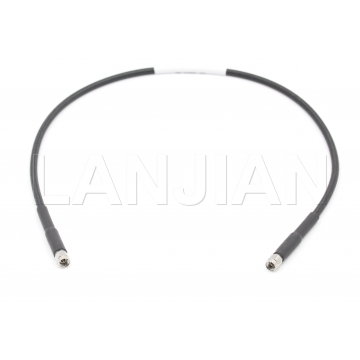

Description：2.92 male cable assembly with z0N cable

Discounted prices that can be enjoyed when reaches the following quantity range：

Data Sheet Download

Stock：0

Enter Quantity:

Price: CALL

Product No.:LJ158678809154

Product Weight:10.00g

Cable length

Standard length

100 150 200 300 500

Custom length

Basic Information
Connector1Series	2.92mm
Connector1Port characteristics	Pin Connector
Connector1Shell material	Stainless steel
Connector1Installation method	Connect the flexibie cable
Connector1Connector Body type	Straight
Connector1Polarity	Standard
Connector1Impedance	50
Connector1Maximum frequency	40
Connector2Series	2.92mm
Connector2Port characteristics	Pin Connector
Connector2Shell material	Stainless steel
Connector2Installation method	Connect the flexibie cable
Connector2Connector Body type	Straight
Connector2Polarity	Standard
Connector2Impedance	50
Connector2Maximum frequency	40
