1.85/SMPM-KJ

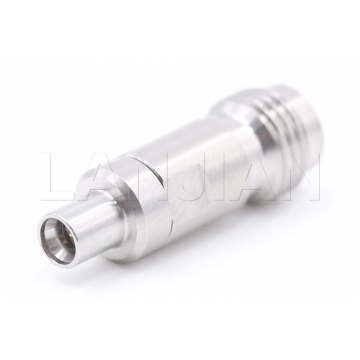

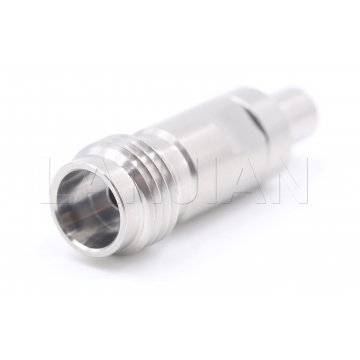

Description:1.85mm female to SMPM male straight adapter,65GHz

  • Discounted prices that can be enjoyed when reaches the following quantity range:
    Pricing Chart
    Qty. Unit Price
    CALL CALL
  • Data Sheet Download

    Stock:0

    Enter Quantity:

    Price: CALL

    Product No.:

    Product Weight:0.00g

    • Specifications

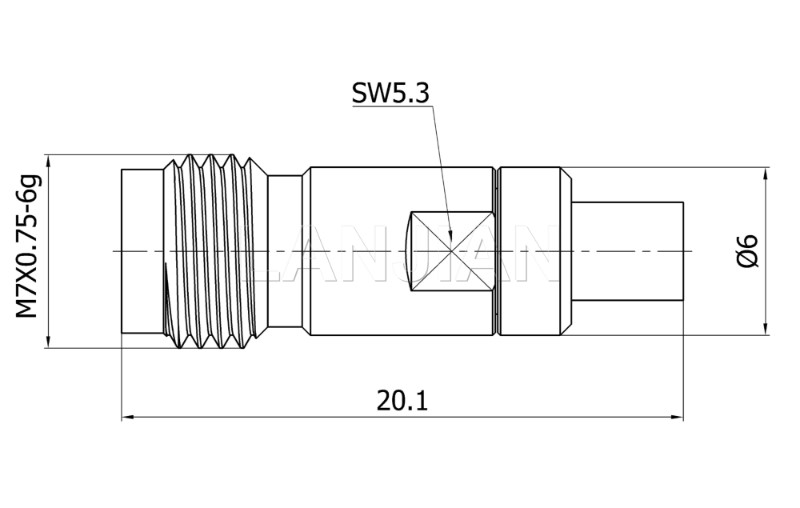

    • 2D Data

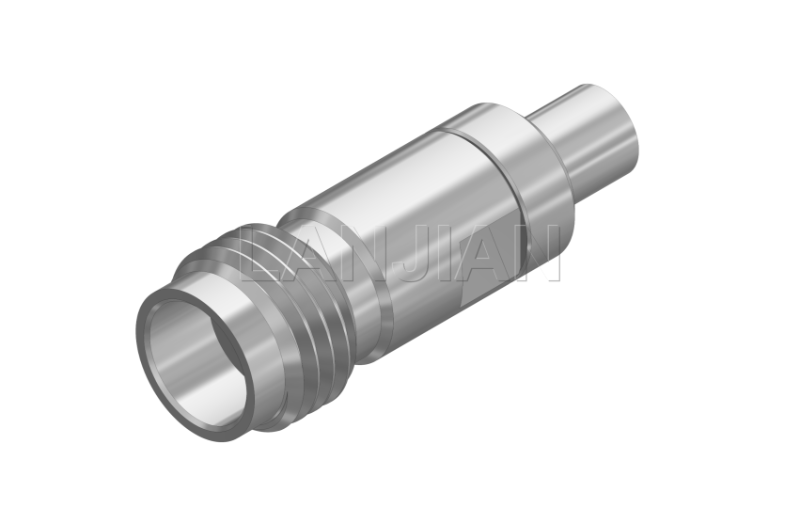

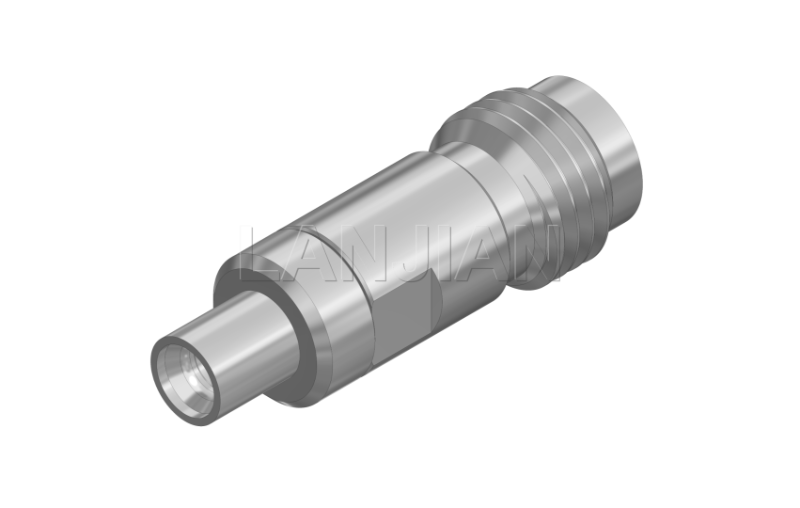

    • 3D Drawing
    Adaptor type Interseries
    connector1 1.85mm
    connector2 SMPM
    connector1/Port characteristics Jack Connector
    connector1/Body type Straight
    connector1/Shell material Stainless steel
    connector1/Installation method Standard
    connector2/Port characteristics Pin Connector
    connector2/Body type Straight
    connector2/Shell material Stainless steel
    connector2/Installation method Standard
    Polarity Standard
    impedance 50
    Maximum frequency 65
