Home > RF adaptors > SMPM > 1.0/SMPM-JK

< >

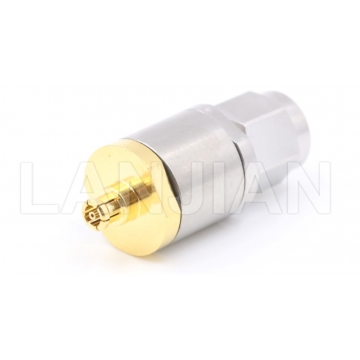

1.0/SMPM-JK

Description：1.0mm male to SMPM female adapter，65GHz

  • Discounted prices that can be enjoyed when reaches the following quantity range：
    Pricing Chart
    Qty. Unit Price
    CALL CALL

    • Data Sheet Download

    Stock：0

    Enter Quantity:

    Price: CALL

    Product No.:

    Product Weight:0.00g

    • Specifications

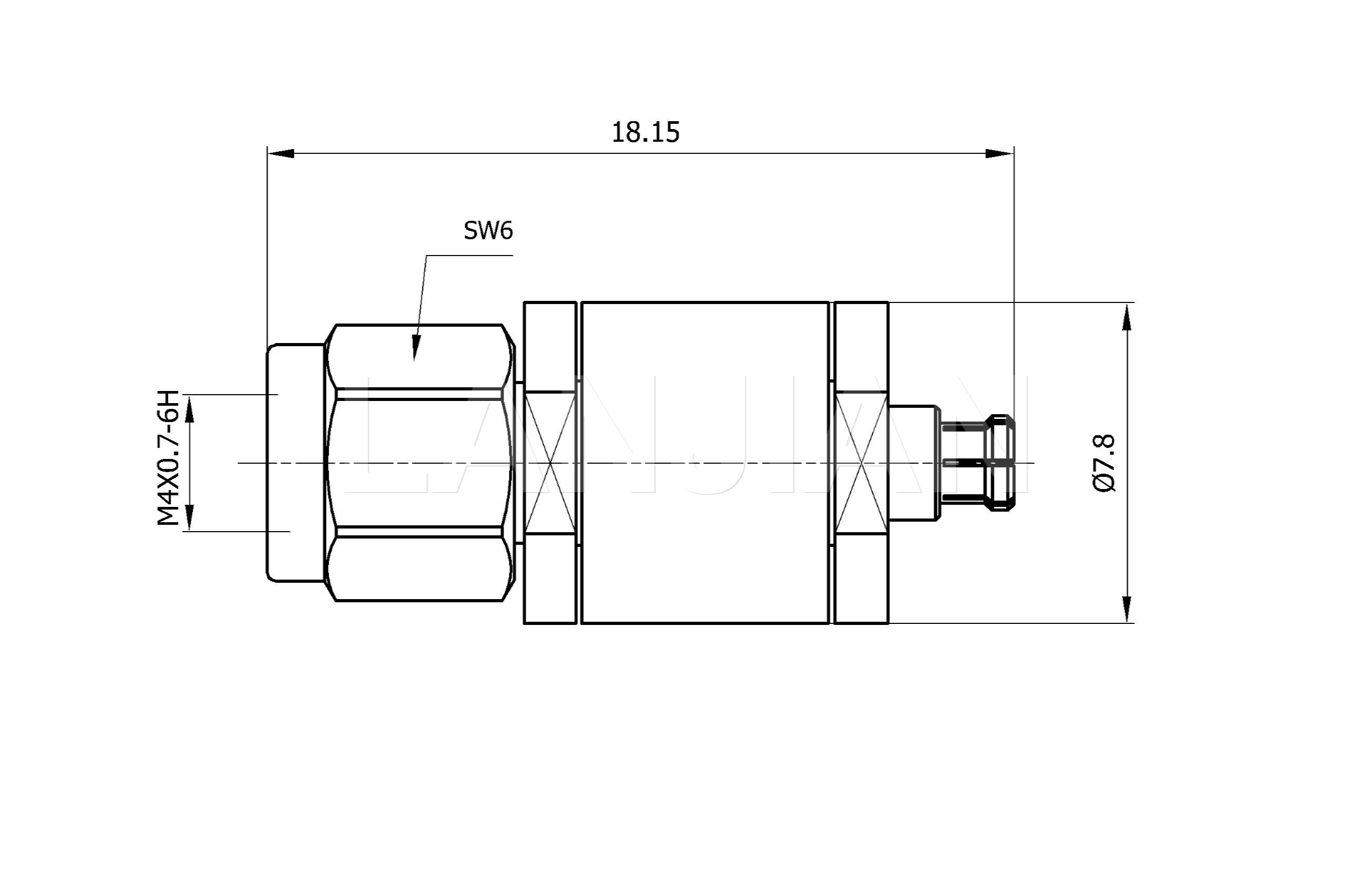

    • 2D Data

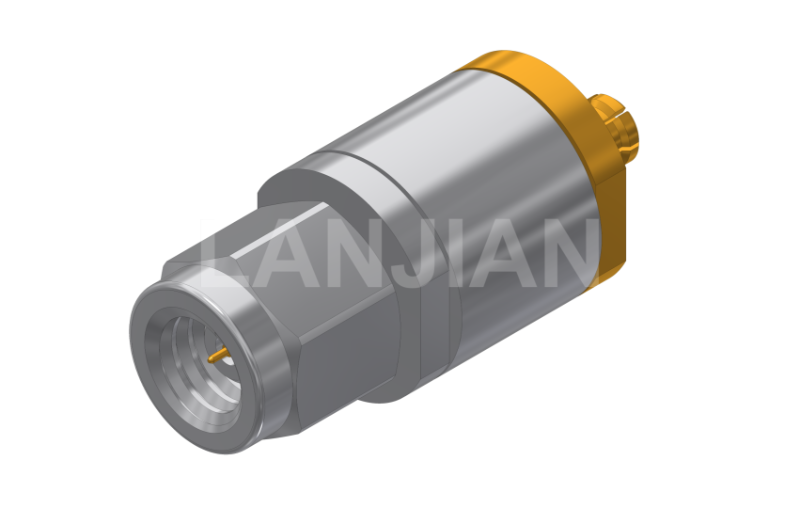

    • 3D Drawing
    Adaptor type Interseries
    connector1 1.0mm
    connector2 SMPM
    connector1/Port characteristics Pin connector
    connector1/Body type Straight
    connector1/Shell material Stainless steel
    connector1/Installation method Standard
    connector2/Port characteristics Jack connector
    connector2/Body type Straight
    connector2/Shell material Stainless connector
    connector2/Installation method Standard
    Polarity Standard
    impedance 50
    Maximum frequency 65
