NMD3.5/N-JK

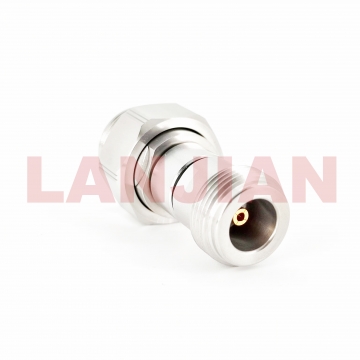

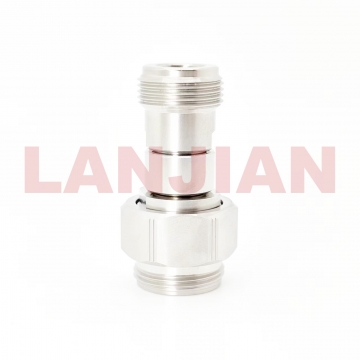

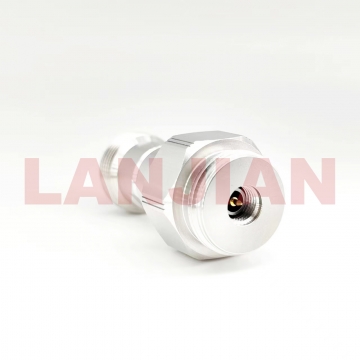

Description：NMD3.5mm male to Type N female straight adapter;18GHz

Discounted prices that can be enjoyed when reaches the following quantity range：

Data Sheet Download

Stock：100

Enter Quantity:

Price: CALL

Product No.:LJ169517997392

Product Weight:0.00g

Adaptor type	Interseries
Connector Series 1	NMD3.5mm
Connector Gender 1	Male
Connector Body type 1	Straight
Connector Body material 1	Stainless steel
Connector Impedance 1	50
Connector Maximum frequency 1	18
Connector Polarity 1	Standard
Connector Series 2	TYPE N
Connector Gender 2	Female
Connector Body type 2	Straight
Connector Body material 2	Stainless steel
Connector Impedance 2	50
Connector Maximum frequency 2	18
Connector Polarity 2	Standard
