Home > RF connectors > 2.4mm > Four-Hole Flange Panel Mount Connector 2.4-KFD4-09

< >

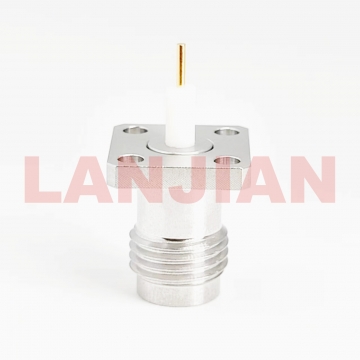

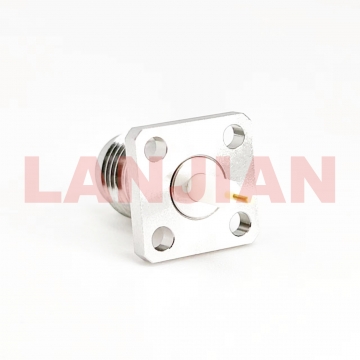

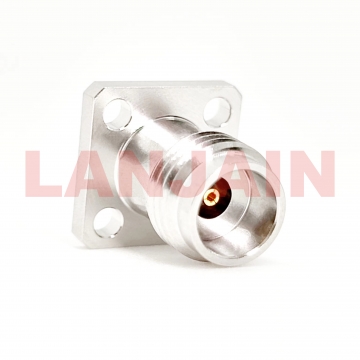

Four-Hole Flange Panel Mount Connector 2.4-KFD4-09

Description：2.4mm female panel connector ,50GHz

  • Discounted prices that can be enjoyed when reaches the following quantity range：
    Pricing Chart
    Qty. Unit Price
    CALL CALL

    • Data Sheet Download

    Stock：100

    Enter Quantity:

    Price: CALL

    Product No.:

    Product Weight:0.00g

    • Specifications
    • 2D Data

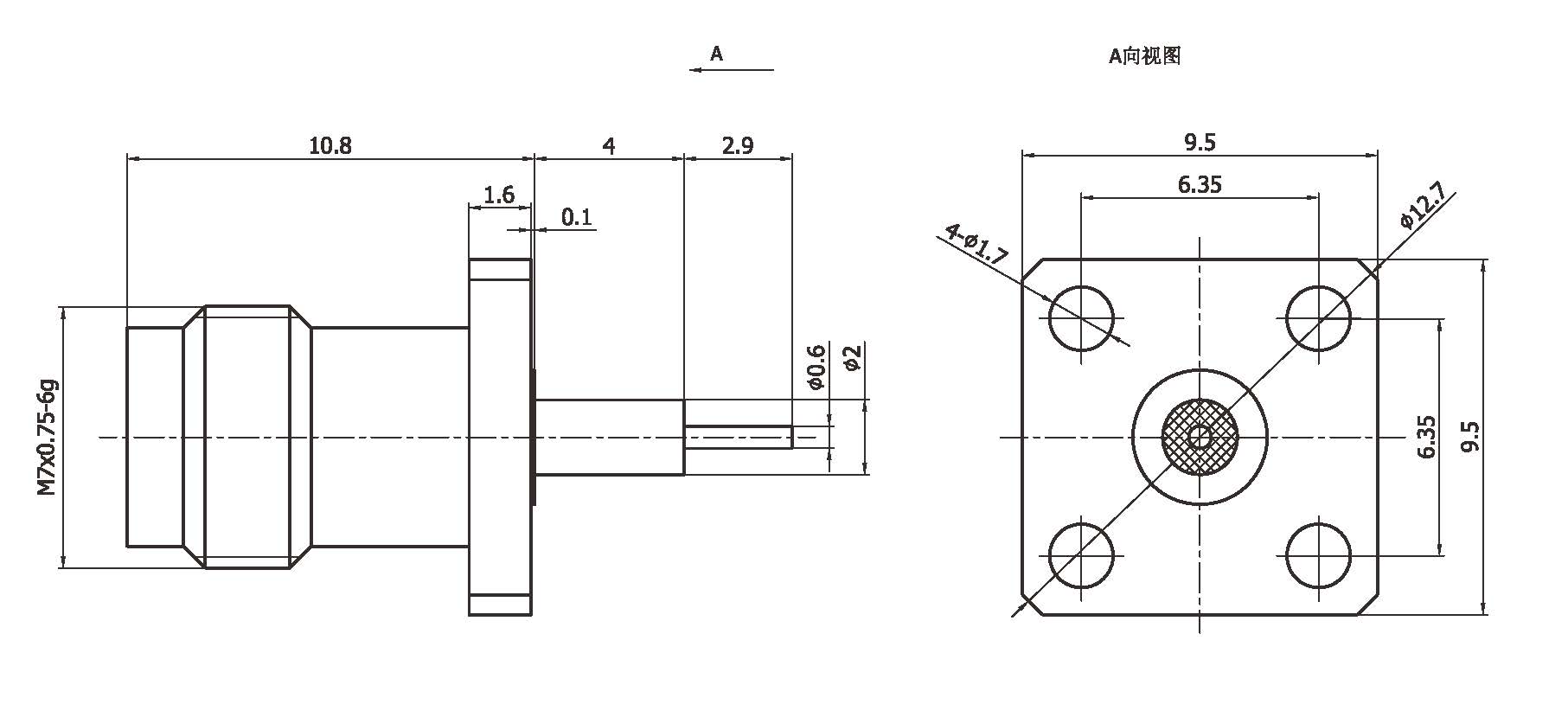

    • 3D Drawing

    Connector Series

    2.4mm

    Connector Gender

    Female

    Connector Body type

    Straight

    Connector Body material

    Stainless steel

    Installation method

    Panel connector

    Connector Impedance

    50

    Connector Maximum frequency

    50

    Connector Polarity

    Standard
