- Specifications
- 2D Data

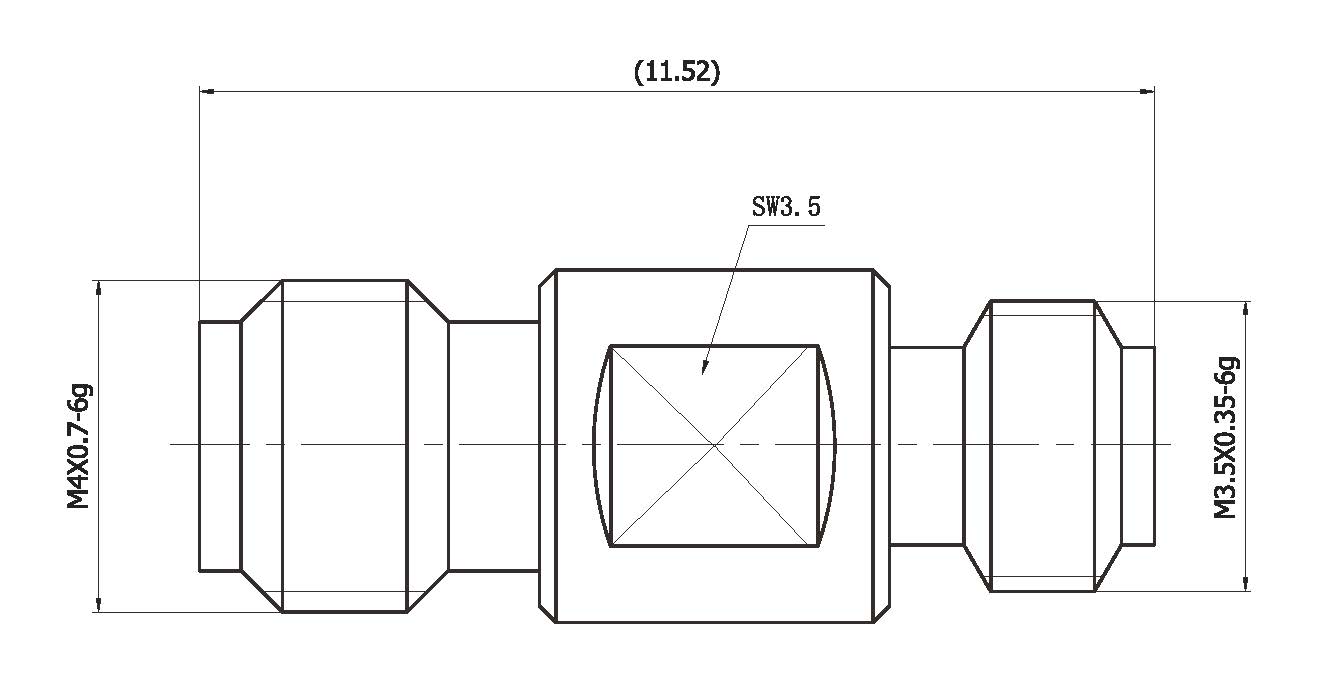

- 3D Drawing
|
Adaptor type |
Interseries |
|
Connector Series 1 |
1.0mm |
|
Connector Gender 1 |
Female |
|
Connector Body type 1 |
Straight |
|
Connector Body material 1 |
Stainless steel |
|
Connector Impedance 1 |
50 |
|
Connector Maximum frequency 1 |
110 |
|
Connector Polarity 1 |
Standard |
|
Connector Series 2 |
0.8mm |
|
Connector Gender 2 |
Female |
|
Connector Body type 2 |
Straight |
|
Connector Body material 2 |
Stainless steel |
|
Connector Impedance 2 |
50 |
|
Connector Maximum frequency 2 |
145 |
|
Connector Polarity 2 |
Standard |
